This is a 520 conversion, variable gearing kit allowing you to choose the size of your sprockets. If you are looking for a standard gearing kit, please visit our Chain and Sprocket Kit section and filter the results by bike where you will find a Standard Gearing Kit specifically for your bike.

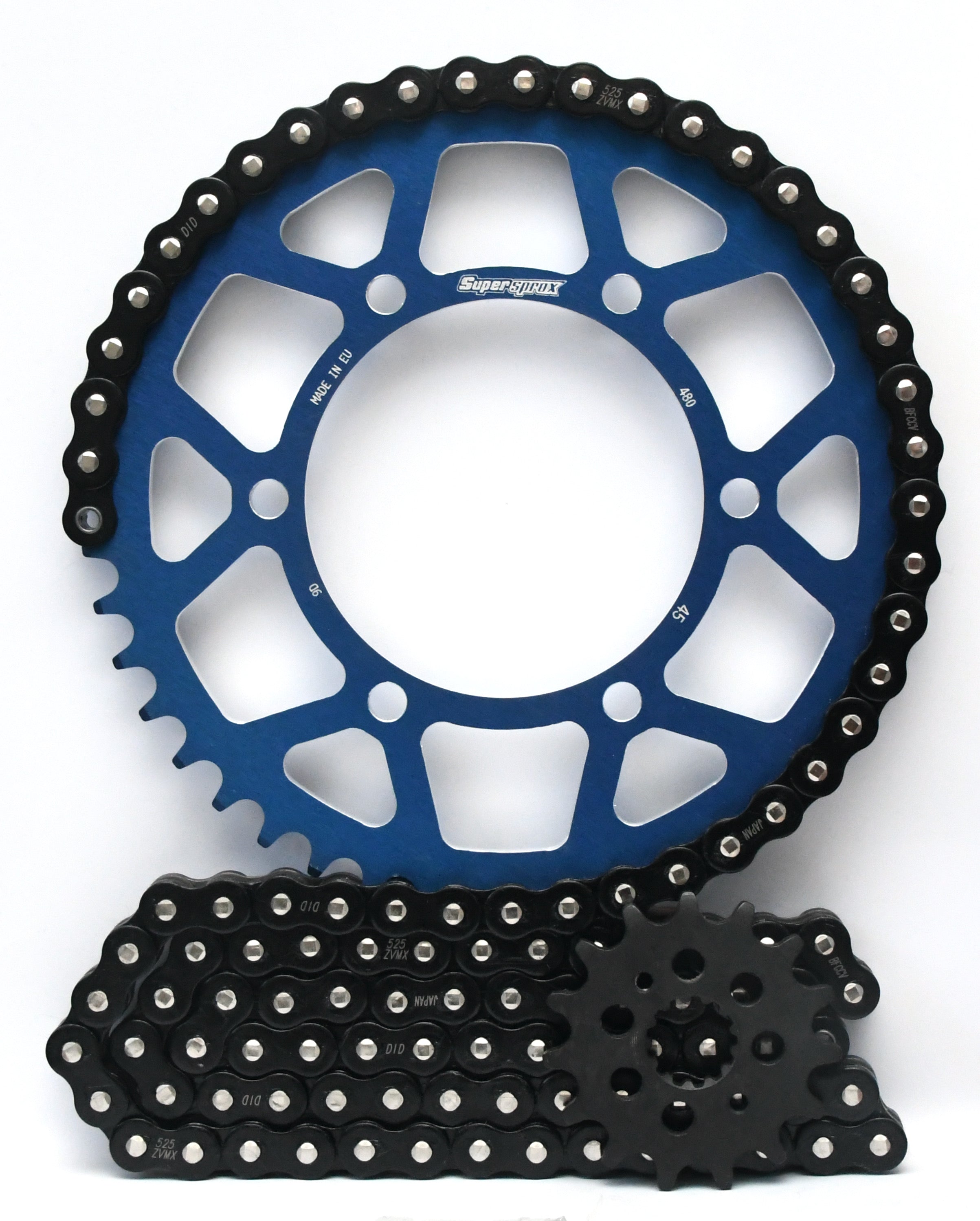

Kit comes complete with
-Supersprox sprocket (choice of Colour and Size)
-Supersprox steel front sprocket (Choice of size)
This is usually a Supersprox steel countershaft sprocket, however some variants are offered in an alternative brand or model, and will be noted in the dropdown
-Choice of chain - You choose the make and model
We stock a selection of chains. You can choose the make, grade and colour in the dropdown. Note that each dropdown contains a manufacturer recommended maximum CC which we would advise you follow.
Chains on a "Choose Your Gearing" Kit are not standard length. Chains are provided longer to ensure you have enough to accommodate different sprocket sizes and different wheelbase lengths. Chains will need to be shortened to the appropriate length; which can be done with a chain tool. If you are not happy with the chain size, you're able to remove the chain from your basket, and add another chain to create your own kit.
All chains include a rivet link (with the exception of the DID 520 VX Pro Street - which also includes the clip link option). Rivet links will require a chain riveter to join. Extra links are available separately.
Please note that many kit images are stock images to represent the style and design of the kits being bought. Using the dropdown will allow you to select the specific items you require
Supersprox was founded in Wales in 1959, by Roger Maughfling. Roger was a passionate enthusiast and loved all things motorised, but particularly motorcycles. He opened a motorcycle repair shop in Mid Wales. Following WW2, parts were in short supply, so Roger began to make his own sprockets for bikes in the shop. Eventually the motorcycle repair shop turned into a small sprocket production factory. The company grew, and the market began to demand higher quality parts. By 1975, the company had its own product name (Supersprox) and was to be found on bikes rolling out of Husqvarna, Maico, Triumph and Norton. Supersprox are now true world leaders in the production of performance motorcycle sprockets, from Aluminium rear sprockets and steel countershaft sprockets to the beautifully designed Stealth Sprocket which mixes the best of both to provide longevity, style and weight saving. Supersprox are suppliers and technical partners to many motorcycle producers inc KTM, Husqvarna, Honda HRC and Yamaha.
Supersprox Stealth Sprockets
What is a Stealth Sprocket?
A Stealth sprocket is a steel sprocket, riveted to an alloy core or centre. This provides the best combination of weight saving and the longevity of a steel sprocket - similar to a floating brake disc.
Are they better than aluminium?
A stealth sprocket will outlast any aluminium sprocket by up to 3 times. There is the extra weight, however the steel section of the sprocket is relatively small and the extra weight is easily outdone by the longevity.
Are they better than steel?
It will last as long as a steel sprocket, but it isn't possible to create the level of strength with a steel sprocket of the same weight as a Stealth sprocket. You may find light steel sprockets, however they will not be as durable or be able to handle the torque produced by modern bikes.
Are the rivets strong enough?
Supersprox have been riveting sprockets for over 20 years, they have installed over 6 million rivets and not had a single failure.
It's known that a Stealth sprocket has covered 20,000 miles and they are used by factory teams in the Dakar Rally and Baja 1000.
The construction of a Stealth Sprocket
Supersprox Edge Sprockets
Now enhance your steel sprockets for other bikes
If you're looking for a combination of the best sprockets on the market, and a durable chain from either AFAM, DID or RK, please view our Chain and Sprocket Kits page - you can filter by bike to find the kit you need.
We offer Standard Gearing Kits - these are to the original manufacturers specifications, or we can offer a "Choose Your Gearing" kit, allowing to select the size of the sprockets you require.
Here at WSC Performance, we pride ourselves on offering the best sprockets and chain combinations available, we are constantly expanding our stock of Supersprox Sprockets and we can offer the full range by order.
If you can't see what you want, please contact us here. Please note - delivery times can vary.
Are you in the Trade and want to sell Supersprox, contact us!
We as bike riders like to shop in two ways for a chain and sprockets.
We either
Want to know what was on the bike without counting all the teeth, links, and having to read the manual, or
We want choice
A bike comes out the factory with gearing suitable for most roads and most conditions, but it is always a balance. If you ride high speed roads all the time, or just go on a out on a country road blast, the requirements of the gears is very different.
If you ride track days or race, the variations will be even more important, more acceleration, higher top speed or maybe longer or shorter wheelbase; there are so many combinations.
Riders will often have a preference, but that may not suit you, so always feel free to try different gearing ratios- especially if you ride on the track. Your efforts won't be wasted, even if you find the +3 on the rear isn't quite right at Donnington; if you only ran it for a day, it'll still be fresh, and you you can use it again, and may find it's perfect at Mallory Park.
General Rules
Changing the front by 1T equates to appoximately 3T on the rear
Reducing the number of teeth on the front has the a similar effect as increasing the number of teeth on the rear. And vice versa
Reducing the front/Increasing the rear - Increases acceleration
Increasing the front/Reducing the rear - Increases top speed
View our gear ratio chart below to see how adjustments will affect your bike
Work out where the standard ratios of you bike sits, then see what your desired combination will become. The bigger the difference, the more the change.
Each kit is created with a pair of Supersprox sprockets (View more on Supersprox here) and a DID chain or an Orange Afam XHR for KTMs.
Standard Gearing* - This kit is available with either a DID VX Pro Street Chain or the top spec DID ZVMX Superstreet chain.
Choose Your Gearing - This kit comes with a choice of front and rear sprockets, and a choice of chains from DID or Afam (KTM only at present).
To find your new sprocket kit, Click Here. Where you can filter the available bikes to find that kits available.
If you don't need a full kit, you can also buy Chains and Sprockets separately.
Chain Length
Consider that you want a chain to fit the sprockets that you are purchasing. If the bike takes a standard chain of 112 links, and you are increasing the sprocket by 3 teeth, its likely the original chain length will fit, although this will slightly shorten your wheel base, and you may want a 114 Link chain. Most importantly, you can always shorten a chain, but you shouldn't ever lengthen it. Spending a couple of quid extra on a longer chain, saves you a lot against having to get another one.
As a result, any "Choose Your Gearing" kit, comes with a 120 Link chain to allow you to make adjustments as required.
If you know the size you want, choose your kit individually.
Looking for a guide on how to change your sprocket - see our friends at I Like Motorbikes video
*We check multiple sources to establish the original spec chain and sprockets, but unfortunately, we may not always be right. If you buy a kit and subsequently find we have given you the wrong information, please contact us, we will replace any incorrect products for free; providing they are unused, under our 30 Day Returns Guarantee. Some bikes (Especially KTMs) will come out the factory with a different chain and sprocket on the bike than is listed in the manual, we stick to what we know from manuals, manufactures info and our completion. If you find differently, please let us know and we'll happily research and correct our information where required.
Please consider which length of chain you require as we cannot be responsible for damage caused by poor fitment. If you are increasing your sprocket size, after about a 2 tooth increase its worth increasing the number of links. Remember, you can always shorten a chain, but shouldn't ever extend it.
If you have any questions or require something not listed, please contact us.
